Vsd Compressor Atlas Copco Oil Injected Rotary Screw Air Compressor Wholesale - Greeknhi Screw Air Compressor
Company Advantages
· Reliable raw materials: the raw materials of Greeknhi Screw Air Compressor vsd compressor atlas copco are all sourced from the suppliers who have established long term reliable cooperation with us. Their products are all certified.
· Every product undergoes a strict control process to ensure the best quality.
· Xin Green Machinery (Fujian) Co., Ltd has diversified vsd compressor atlas copco, advanced techniques and high ability of R&D.
Product description

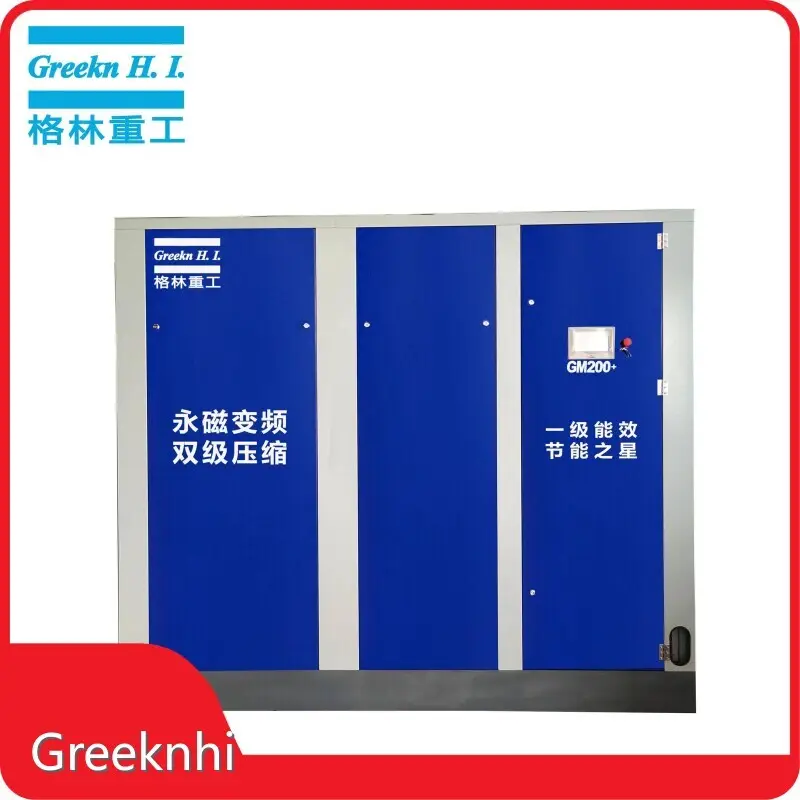

GM+ Series PM Motor Two Stage Variable Speed Rotary Screw Air Compressor
Two stage compressor air end
This two stage compressor lowers the compression ratio compared with a single air compressor, reduces air leakage, bearing load and ensures a longer life service and volumetric efficiency of the air end. With our optimization, bearings have a life span of over 150,000 hours, and low noise, low vibration, safe and reliable operation is ensured.
Permanent magnet variable frequency motor
Greeknhi's permanent magnet motor uses a motor with the temperature rise lower than 60K, ensuring the compressor has a longer life. The motor is made from rare earth permanent magnet material, which requires a low current due to its high magnetic strength and load torque during motor start up and operation. The combined use of this motor and permanent magnet rotor achieves soft-start and electricity saving of up to 50%, with the motor's efficiency up to 10%-15% when compared with an asynchronous motor with the same specifications, thus avoiding a powerful mechanical impact on the compressor under the motor's full pressure start and ensuring a longer service life.
Intelligent control system
Greeknhi's GM+ series intelligent control system is able to conduct remote control through computer interface and achieve simultaneous control for multiple compressors.
Split type
The air end and motor is connected separately, which is easier for installation, dismantlement and maintenance.
Backward curved centrifugal fan
An optional backward curved centrifugal fan uses an impeller to increase air flow. In addition, during the operation the centrifugal fan features no friction, low noise, no dust and easy maintenance.
Product parameters
GM+ Series PM Motor Two Stage Variable Speed Rotary Screw Air Compressor
| Motor power: | 30-335HP | Motor power: | 22-250kW |
| Motor type: | Permanent magnet motor | Working pressure: | 7-13BAR |
| Capacity: | 0.7-54.0m³/min | Voltage: | 220/380/415/440/460V |
| Frequency: | 50/60HZ | Air end: | Two stage |
GM+ series two stage permanent magnet VSD screw air compressor：
Model | Pressure | FAD | Power | Weight | Dimension | Size of air outlet |
L×W×H | ||||||
bar | m³/min | KW/HP | Kg | mm | ||
GM22+ | 13 | 0.7-4.15 | 22/30 | 780 | 1250×750×1400 | G1″ |
GM30+ | 13 | 1.16-6.4 | 30/40 | 980 | 1650×850×1650 | G1″ |
GM37+ | 13 | 1.54-7.25 | 37/50 | 1350 | 1650×850×1650 | G1 1/2″ |
GM45+ | 13 | 1.54-9.7 | 45/60 | 1550 | 1650×850×1650 | G1 1/2″ |
GM55+ | 13 | 1.54-12.5 | 55/75 | 1750 | 1850×1050×1800 | G2″ |
GM75+ | 13 | 2.52-16.5 | 75/100 | 2100 | 2050×1050×1850 | G2″ |
GM90+ | 13 | 2.52-20.5 | 90/125 | 2500 | 2050×1050×1850 | G2″ |
GM110+ | 13 | 3.77-24.5 | 110/150 | 2850 | 2780×1600×1990 | G3″ |
GM132+ | 13 | 3.77-28.0 | 132/175 | 3350 | 2780×1890×1990 | G3″ |
GM160+ | 13 | 4.0-33.6 | 160/215 | 3750 | 2780×1890×1990 | G4″ |
GM200+ | 13 | 10.0-43.0 | 200/270 | 5050 | 3390×2120×2400 | G4″ |
GM250+ | 13 | 10.0-54.0 | 250/335 | 5450 | 3390×2120×2400 | G4″ |
Company Features
· Xin Green Machinery (Fujian) Co., Ltd has a large factory dedicated to vsd compressor atlas copco production.
· Xin Green Machinery (Fujian) Co., Ltd has established R&D institutes and complete vsd compressor atlas copco factories around the nation.
· Our business philosophy: integrity, pragmatism, and innovation. The company always strive to create valuable products for customers with sincerity and comprehensive services. Call!
Product Details
Our vsd compressor atlas copco are processed by the latest technology in the industry, and they perform better in the following details.
Application of the Product
The vsd compressor atlas copco produced by our company is widely used in various industries and fields.
While providing quality products, Greeknhi is dedicated to providing personalized solutions for customers according to their needs and actual situations.
Enterprise Advantages
A group of production experts is introduced to provide effective guidance and suggestions for the production of quality products. They are knowledgeable, professional and dedicated.
Greeknhi will deeply understand the needs of users and offer great services to them.
In the following days, our company will keep carrying forward the enterprise spirit of 'integrity, sincerity and integrity'. During the development, we always believe that details determine the brand and innovations change destiny. We are committed to providing consumers with better products and more professional services, and striving to become a domestic leading company with strong industry influence.
Founded in our company strictly controls quality and strengthens management and independent innovation. After years, we are a powerful leader in the industry.
Our company builds the sales chain of 'offline + online', and focus on expanding the domestic market. After continuous exploration and improvement, we have obtained the qualifications and recognition of the domestic major markets, and has won the majority of consumers for the excellent products. Besides, our market share has been greatly increased, and our sales network has been expanded continuously.
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
