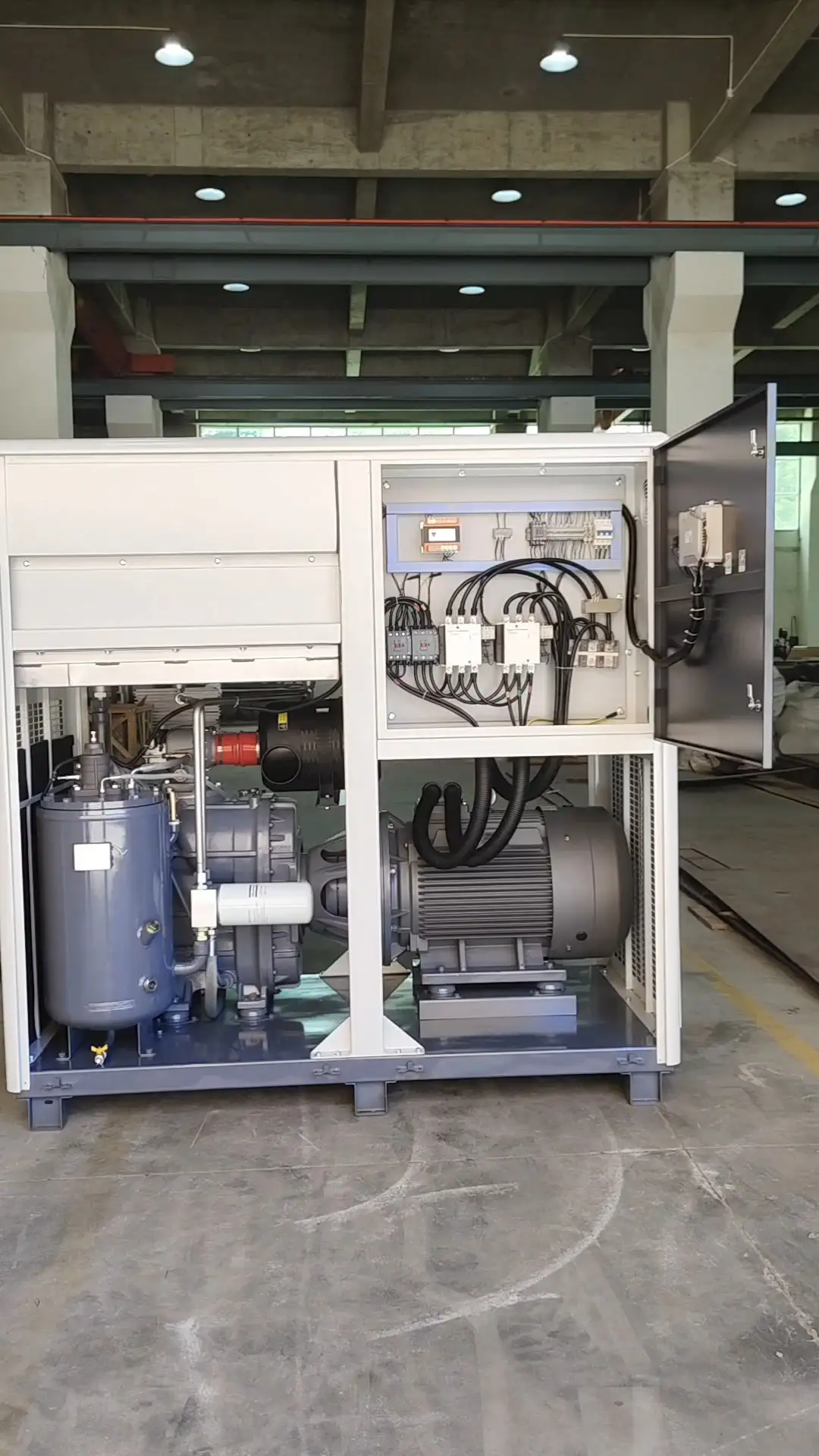

GA75+VSD Two Stage Variable Speed Oil Injected Screw Air Compressor From Greekn HI

GA+VSD Series Two Stage Variable Speed Rotary Screw Air Compressor

MOQ: 1SET

Payment: T.T

Delivery time:10-30 days

Start Port: Xiamen port,China.

Certification: CE GCCA

Packing: Paper box

Model: GA22+VSD-GA250+VSD

Motor power: 30-335HP

Motor power: 22-250kW

Motor type: High efficiency 4p motor

Working pressure: 7-13BAR

Capacity: 0.7-54.0m³/min

Voltage: 220/380/415/440/460V

Frequency: 50/60HZ

Air end: Two stage

Two stage compressor air end
This two stage compressor lowers the compression ratio compared with a single air compressor, reduces air leakage, bearing load and ensures a longer life service and volumetric efficiency of the air end. With our optimization, bearings have a life span of over 150,000 hours, and low noise, low vibration, safe and reliable operation is ensured.

Four-pole motor
As the motor speed is relatively low with 1480RPM (50HZ) as compared with that of the two-pole motor, there is air compressor wear and a longer service life.

Intelligent control system
Greekn H.I.'s GA+VSD series intelligent control system is able to conduct remote control through computer interface and achieve simultaneous control for multiple compressors.

Split type
The air end and motor is connected separately, which is easier for installation, dismantlement and maintenance.

Backward curved centrifugal fan
An optional backward curved centrifugal fan uses an impeller to increase air flow. In addition, during the operation the centrifugal fan features no friction, low noise, no dust and easy maintenance.
