Product parameters

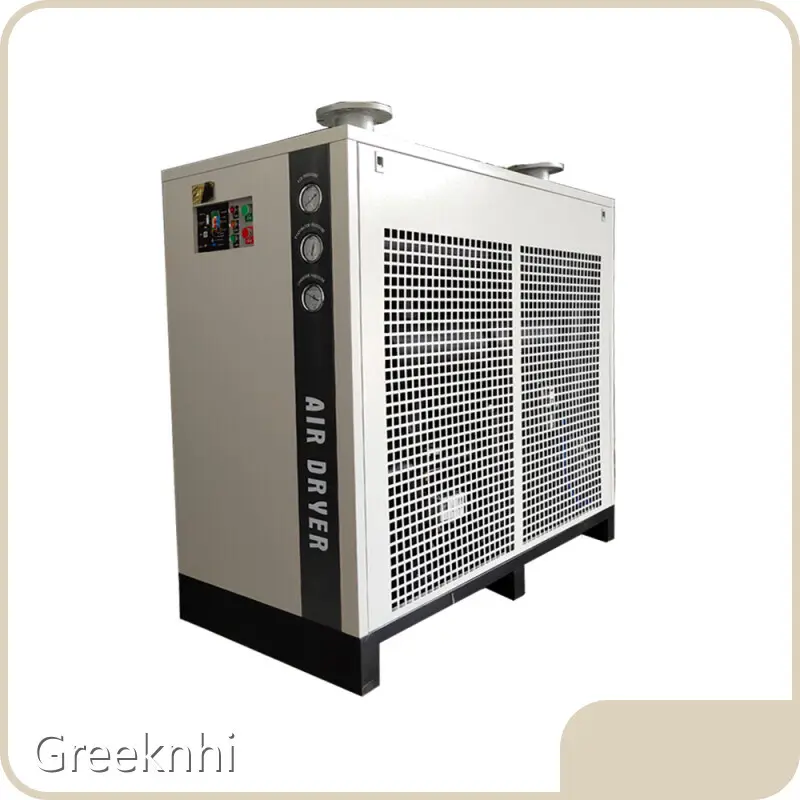

FD series Refrigerated Air Dryer
| Inlet temperature: | Lower than 80℃ (high temperature); lower than 45℃ (low temperature) | Working pressure: | 6~10kg/cm² |
| Maximum pressure: | 1.0Mpa, 10kg/cm² (customized pressure is available) | Environment temperature: | 2~40℃ |
| Refrigerant: | R22 (R407c, R134a customized refrigerant is provided) | Dew point temperature: | 2~11℃ (when air pressure is 7kg/cm²) |
Features:
1.Refrigerated compressed air dryers use a high quality thermal expansion valve, which is able to automatically adjust refrigerant supply according to the dryer's actual load, making the air compressor more energy saving and energy efficient.
2.This air dryer is designed with a superior electronic drain valve, which, after being set, can discharge the moisture accumulated in the compressed air in time, ensuring the dryness of the compressed air.
3.The heat exchanger in the refrigerant compressed air dryer uses an 8mm thick copper pipe, ensuring the heat exchanger remains crack free.
4.The filter in the air dryer features a small volume and large filtration area, which can filter moisture and impurities in the cooling system, making the air dryer cleaner and less prone to failure frequencies.
5.The refrigerant compressed air dryer is able to automatically detect low oil pressures in the semi-hermetic compressor to make it more reliable and safe.
Notes
In the specification chart, "G" stands for "screw threaded connection", while the "DN" stands for "nominal diameter of flange connection".
There should be no less than 1m space left around the dryer unit for ventilation and maintenance. The dryer unit can be easily installed without the base.
The stop valve must be installed in the dryer unit inlet and outlet. A bypass valve should also be mounted in the unit under the condition that the air displacement is not interrupted. This makes it easier to repair and maintain the equipment.
If the model, parameters, specifications and colors of the air dryer changes, please refer to the machine for actual data.
The rated air handling capacity should be adjusted when the working temperature and pressure exceeds the specified requirements.
We are able to provide customized air dryers with various specifications.
Main technical data of FD series air dryer
| Model | Handling capacity (m3/min) | Overall power(KW) | Power supply(V) | Inlet and outlet size | Dimensions(mm) | Apr.net weight(KG) |
| FD20 | 1.5 | 0.8 | 220V/1PH | G1'' | 700*420*740 | 50 |
| FD30 | 2.0 | 0.8 | G1'' | 705*425*800 | 55 | |
| FD40 | 2.5 | 0.9 | G1½'' | 700*420*840 | 60 | |
| FD60 | 4.0 | 1.08 | G2'' | 1000*500*880 | 90 | |
| FD120 | 6.8 | 1.3 | G2'' | 1000*500*930 | 110 | |
| FD180 | 11 | 1.9 | G2½'' | 1250*570*1050 | 166 | |
| FD250 | 14 | 2.5 | 380V/3PH | DN70 | 1250*570*1140 | 182 |
| FD300 | 18 | 2.8 | DN80 | 1400*630*1330 | 230 | |
| FD400 | 23 | 3.2 | DN80 | 1400*630*1360 | 280 | |
| FD450 | 30 | 4.0 | DN80 | 1400*630*1360 | 330 | |
| FD600 | 35 | 6.5 | DN100 | 1800*800*1400 | 500 | |
| FD750 | 45 | 8.0 | DN100 | 1800*900*1550 | 550 | |
| FD850 | 55 | 10 | DN125 | 2300*900*2050 | 848 |
Company Advantages
· Such design idea as refrigerated air compressor provides beneficial inspiration for the improvement of R&D abilities of Xin Green Machinery (Fujian) Co., Ltd .
· The product is guaranteed to be equipped with stable and reliable performance.
· We will provide drawings and clear installation guide for refrigerated air compressor to make it more convenient and effective.
Company Features
· Xin Green Machinery (Fujian) Co., Ltd is an attractive Chinese manufacturer focusing on refrigerated air compressor R & D and production for many years.
· We have a responsive team of expert engineers who each has a wealth of experience in the refrigerated air compressor industry. They work with our customers to ensure that the project runs reliably and accurately.
· Greeknhi Screw Air Compressor has been devoted to helping customers to enjoy refrigerated air compressor use experience. Inquire online!
Application of the Product
Greeknhi's refrigerated air compressor can be applied to different fields and scenes, which enables us to meet different requirements.
Greeknhi has rich experience in the industry and we are sensitive about customers' needs. Therefore, we can provide comprehensive one-stop solutions based on customers' actual situations.
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
