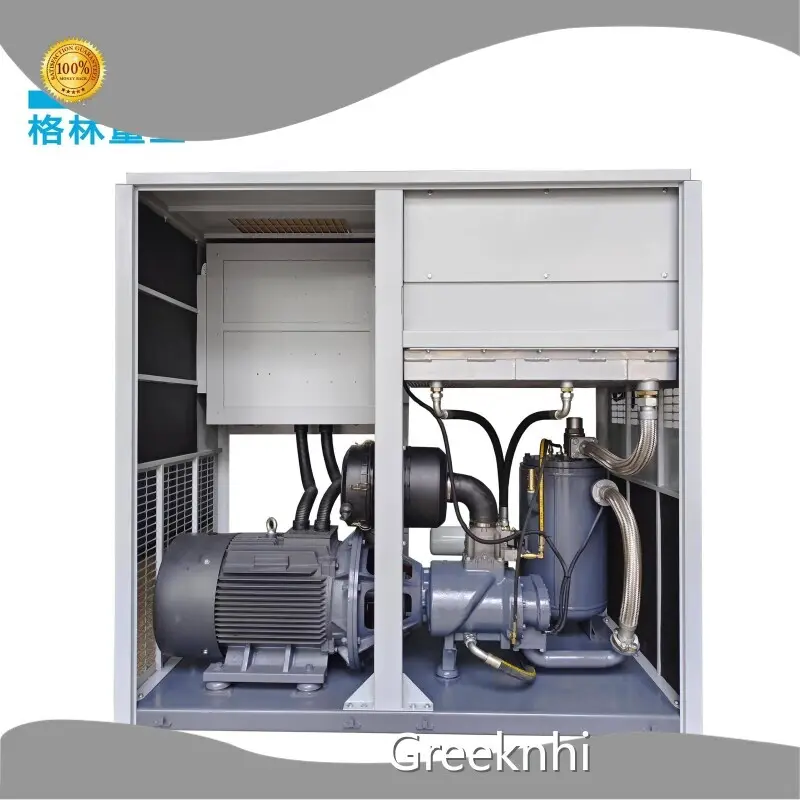

Atlas Copco Air Compressor Fixed Speed Rotary Screw Air Compressor Wholesale - Greeknhi Screw Air Compressor-1
Product details of the atlas copco air compressor
Product Overview
Every piece of Greeknhi Screw Air Compressor atlas copco air compressor is born in a scientific and orderly production process. The performance of this product has been greatly enhanced due to the rigorous quality tests. The sales network of Xin Green Machinery (Fujian) Co., Ltd spreads all over the country.
Product Introduction
The atlas copco air compressor produced by Greeknhi is better than the previous generation. The specific performance is as follows.
Features
Highly efficient cooling system
Greeknhi's GA series air compressor is designed with an operating temperature of 55℃, similar to a tropical desert environment. This series features an improved cooling system for controlling the operating temperature of the unit cooler, thus ensuring the air compressor will not fail during high temperature operations.
Three stage oil-gas separator
This three stage oil-gas separator is made independently by Greenair and has won a national patent. It includes three stages: centrifugation, sediment and filtration. It can provide high quality compressed air with an oil content less than 2ppm.
Original air end with large air capacity
The air compressor is equipped with asymmetric male and female rotors and they have two prominent advantages over the other rotors.As the gear tooth profile of the rotor consists of an arc and arc envelope, a "convex-concave" seal is achieved between the rotors, which helps to produce hydrodynamic lubricant film and make the compressor more efficient.Speed of this air compressor is 30-50% lower than that of other air compressors, due to the large rotor and bearing. The rotor and bearing also reduce noise, vibration and effects caused by impurities and carbides on the rotor and ensures a longer service life.
High quality air end bearing
Greeknhi GA series compressor uses SKF bearings. It features a stable operation and is applicable to variable working conditions, ensuring the motor a longer service life.
Highly efficient drive system
It is an integrated drive system without a gear. Using a 1:1 direct connection drive, there is no production loss, making it an ideal drive system. It combines the motor, coupling box and air end as a whole to ensure compressor efficiency and center alignment of motor and air end when they are installed or during operation.
Special motor for air compressor
The highly efficient motor meets IE3 standards with an energy efficiency up to 93%.
Main technical data of GA series screw air compressor
| Model | Motor power | Working pressure bar | Capacity m3/min | Dimensions mm |
| GA7 | 7.5kW/10HP | 8 10 13 | 1.2 1.0 0.8 | 1000*700*1220 |
| GA11 | 11kW/15HP | 8 10 13 | 2.0 1.8 1.6 | 1200*750*1400 |
| GA15 | 15kW/20HP | 8 10 13 | 2.88 2.41 2.02 | 1250*750*1400 |
| GA22 | 22kW/30HP | 8 10 13 | 3.97 3.43 3.02 | 1250*750*1400 |
| GA30 | 30kW/40HP | 8 10 13 | 5.20 4.72 4.29 | 1650*850*1650 |
| GA37 | 37kW/50HP | 8 10 13 | 6.70 6.08 4.88 | 1650*850*1650 |
| GA45 | 45kW/60HP | 8 10 13 | 8.24 7.40 6.20 | 1650*850*1650 |
| GA55 | 55kW/75HP | 8 10 13 | 10.52 8.90 8.00 | 1850*1050*1800 |
| GA75 | 75kW/100HP | 8 10 13 | 14.36 12.02 10.34 | 2050*1050*1850 |
| GA90 | 90kW/125HP | 8 10 13 | 16.20 14.52 12.60 | 2050*1050*1850 |
| GA110 | 110kW/150HP | 8 10 13 | 22.0 19.1 15.5 | 2780*1600*1990 |
| GA132 | 132kW/175HP | 8 10 13 | 26.0 22.0 18.8 | 2780*1890*1990 |
| GA160 | 160kW/215HP | 8 10 13 | 30.3 26.6 22.5 | 2780*1890*1990 |
| GA200 | 200kW/270HP | 8 10 13 | 38.0 36.0 28.1 | 3390*2120*2400 |
| GA250 | 250kW/335HP | 8 10 13 | 45.7 39.8 33.0 | 3390*2120*2400 |
| GA315 | 315kW/430HP | 8 10 13 | 56.0 50.8 45.7 | 3860*2200*2400 |
| GA355 | 355kW/485HP | 8 10 13 | 65.5 55.2 49.6 | 4200*2200*2400 |
Company Advantages
Located in Xin Green Machinery (Fujian) Co., Ltd is an integrated company in the industry. The business range includes production, processing and sales. And the products include Rotary Screw Air Compressor, Atlas Copco Screw Compressor, Compressed Air Dryer. Greeknhi always gives priority to customers. Depending on great sales system, we are committed to providing excellent services covering from pre-sales to in-sales and after-sales. If you want to know more relevant product information, feel free to contact us. We are dedicated to serving you.
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
