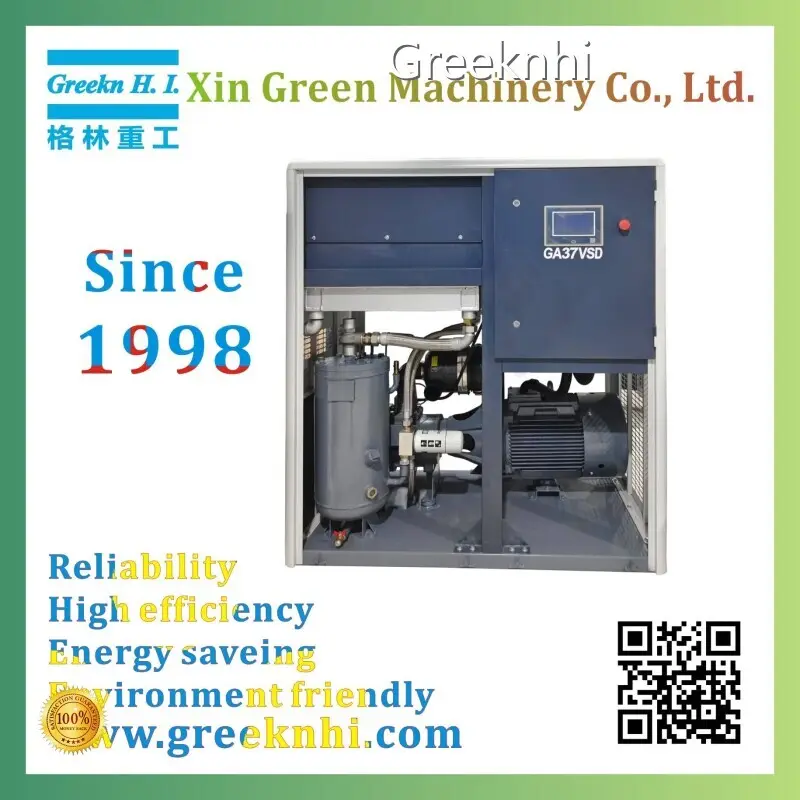

Variable Speed Air Compressor by Greeknhi Screw Air Compressor
Features
Patented air end
The design of ratio 5:6, meeting the standard of European energy label class 1.
Specialized compressor inverter
Strictly comply with the standars of EMC: highly-efficicent PWM inverter controls the rotary speed of the motor according to the air demand. There is no compressed air waste.
Inverter as the soft starter helps reduce the launching current when starting machine, which is a way to protect the compressor.
Two control system: fixed speed(contactor) and VSD. two control system can change over freely. In the case the inverter fails, the compressor can change over the fixed speed mode to keep running. This function will do great help in those factory where no standby machine is available.
Specialized compressor motor
The IE3 high efficiency compressor motor guarantees the operation round the clock and saving electricity.
Intelligent control system
Greeknhi's GAVSD series intelligent control system is able to conduct remote control through computer interface and achieve simultaneous control for multiple compressors.
Load and Unload inlet Valve
Integration of discharge valve, air admission valve, solenoid valve and proportional valve into an intake valve makes it install easily and quickly.
Main technical data of GAVSD series screw air compressor
| Model | Motor power | Working pressure bar | Capacity m3/min | Dimensions mm |
| GA7VSD | 7.5KW/10HP | 8-13 | 0.3-1.2 | 1000*700*1220 |
| GA11VSD | 11KW/15HP | 8-13 | 0.3-2.0 | 1200*750*1400 |
| GA15VSD | 15KW/20HP | 8-13 | 0.5-2.8 | 1250*750*1400 |
| GA22VSD | 22KW/30HP | 8-13 | 0.7-4.02 | 1250*750*1400 |
| GA30VSD | 30KW/40HP | 8-13 | 1.16-5.5 | 1650*850*1650 |
| GA37VSD | 37KW/50HP | 8-13 | 1.54-6.70 | 1650*850*1650 |
| GA45VSD | 45KW/60HP | 8-13 | 1.54-8.04 | 1650*850*1650 |
| GA55VSD | 55KW/75HP | 8-13 | 1.54-10.5 | 1850*1050*1800 |
| GA75VSD | 75KW/100HP | 8-13 | 2.52-15.0 | 2050*1050*1850 |
| GA90VSD | 90KW/125HP | 8-13 | 2.52-16.5 | 2050*1050*1850 |
| GA110VSD | 110KW/150HP | 8-13 | 3.77-22.0 | 2780*1600*1990 |
| GA132VSD | 132KW/175HP | 8-13 | 3.77-26.0 | 2780*1890*1990 |
| GA160VSD | 160KW/215HP | 8-13 | 4.0-30.3 | 2780*1890*1990 |
| GA200VSD | 200KW/270HP | 8-13 | 10.0-38.0 | 3390*2120*2400 |
| GA250VSD | 250KW/335HP | 8-13 | 10.0-45.7 | 3390*2120*2400 |
Company Advantages
· Greeknhi Screw Air Compressor variable speed air compressor has a variety of designs to meet with different customer needs.
· The product is guaranteed to the product is 100% qualified as all defects have been eliminated in our quality control procedure.
· With the increasing popularity worldwide, the product is bound to have a wider commercial application in the future.
Company Features
· Xin Green Machinery (Fujian) Co., Ltd is a well-respected company specializing in the manufacture of variable speed air compressor. We have a strong capacity in manufacturing.
· Over these years, we have been awarded different honors, such as “Trustworthy and Honesty Group” and “China Well-Known Trademark”. All these are strong evidence of our ability and integrity.
· Greeknhi Screw Air Compressor now abides by improving the quality of the service. Get info!
Application of the Product
Greeknhi's variable speed air compressor is available in a wide range of applications.
Greeknhi has an excellent team consisting of talents in R&D, production and management. We could provide practical solutions according to actual needs of different customers.
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
