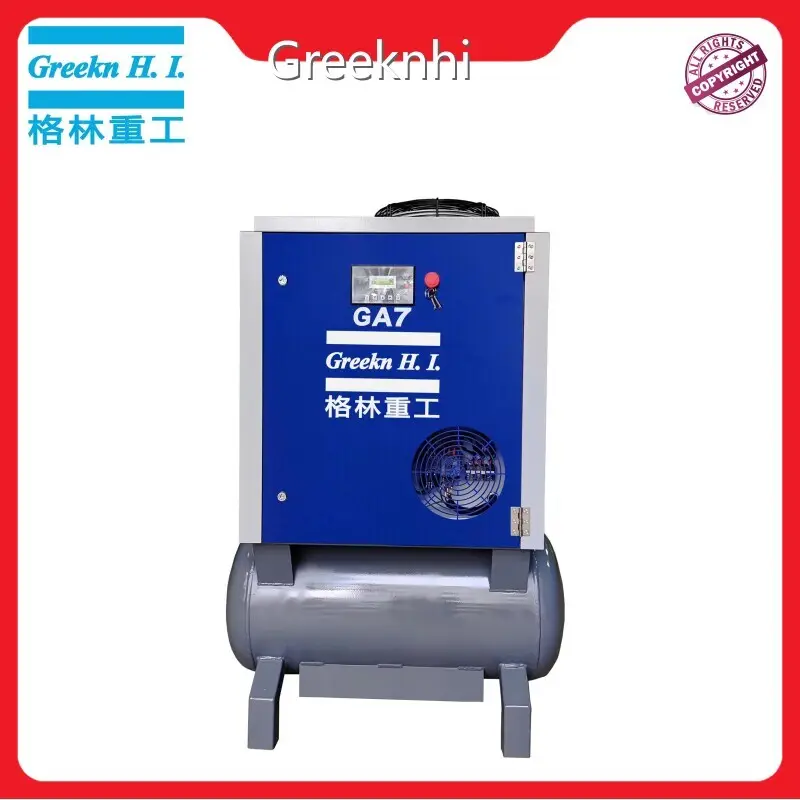

Tank Mounted Compressor GA7 7.5kW 10HP Oil Injected Industrial Air Compressor
Product details of the atlas copco ga compressor
Quick Detail
Our machinery is provided with advantages of compact structure, novel design, stable performance and convenient operation and so on. The well-designed Greeknhi Screw Air Compressor atlas copco ga compressor makes it more special than other similar products. Tests and analyzed data show that the performance of this product can meet the needs of customers. Under the premise of steady growth in domestic markets, the product has also gradually expanded its foreign markets.
Product Description
Compared with other products in the same category, Greeknhi's atlas copco ga compressor has the following advantages.
Features
Highly efficient cooling system
Greeknhi's GA series air compressor is designed with an operating temperature of 55℃, similar to a tropical desert environment. This series features an improved cooling system for controlling the operating temperature of the unit cooler, thus ensuring the air compressor will not fail during high temperature operations.
Three stage oil-gas separator
This three stage oil-gas separator is made independently by Greenair and has won a national patent. It includes three stages: centrifugation, sediment and filtration. It can provide high quality compressed air with an oil content less than 2ppm.
Original air end with large air capacity
The air compressor is equipped with asymmetric male and female rotors and they have two prominent advantages over the other rotors.As the gear tooth profile of the rotor consists of an arc and arc envelope, a "convex-concave" seal is achieved between the rotors, which helps to produce hydrodynamic lubricant film and make the compressor more efficient.Speed of this air compressor is 30-50% lower than that of other air compressors, due to the large rotor and bearing. The rotor and bearing also reduce noise, vibration and effects caused by impurities and carbides on the rotor and ensures a longer service life.
High quality air end bearing
Greeknhi GA series compressor uses SKF bearings. It features a stable operation and is applicable to variable working conditions, ensuring the motor a longer service life.
Special motor for air compressor
The highly efficient motor meets IE3 standards with an energy efficiency up to 93%.
Main technical data of GA series screw air compressor
| Model | Motor power |
Working pressure bar |
Capacity m3/min |
Dimensions mm |
| GA7 | 7.5KW/10HP |
8 10 13 |
1.2 1.0 0.8 |
1000*700*1220 |
| GA11 | 11KW/15HP |
8 10 13 |
2.0 1.8 1.6 |
1200*750*1400 |
| GA15 | 15KW/20HP |
8 10 13 |
2.88 2.41 2.02 |
1250*750*1400 |
| GA22 | 22KW/30HP |
8 10 13 |
3.97 3.43 3.02 |
1250*750*1400 |
| GA30 | 30KW/40HP |
8 10 13 |
5.20 4.72 4.29 |
1650*850*1650 |
| GA37 | 37KW/50HP |
8 10 13 |
6.70 6.08 4.88 |
1650*850*1650 |
| GA45 | 45KW/60HP |
8 10 13 |
8.24 7.40 6.20 |
1650*850*1650 |
| GA55 | 55KW/75HP |
8 10 13 |
10.52 8.90 8.00 |
1850*1050*1800 |
| GA75 | 75KW/100HP |
8 10 13 |
14.36 12.02 10.34 |
2050*1050*1850 |
| GA90 |
90KW/125HP |
8 10 13 |
16.20 14.52 12.60 |
2050*1050*1850 |
Company Information
Xin Green Machinery (Fujian) Co., Ltd is known as the reputed manufacturer of finest quality such as ga compressor. Greeknhi Screw Air Compressor enjoys a great reputation because of its highly innovative technologies. Greeknhi Screw Air Compressor is confident to provide you the most comprehensive services and products of high quality. Inquiry!
Greeknhi's Rotary Screw Air Compressor, Screw Compressor, Compressed Air Dryer are available in multiple types and in reliable quality. Feel free to contact us!
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
