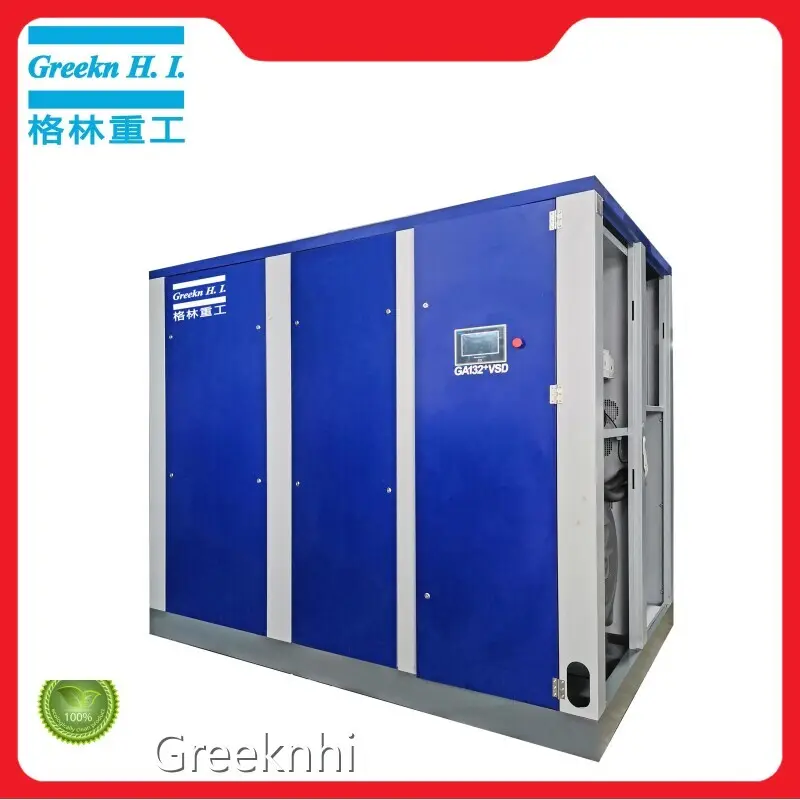

Oil Lubricated Screw Air Compressor GA132+VSD 132kW 175HP Screw Air Compressor With Centrifugal Fan
Company Advantages
· oil lubricated rotary screw air compressor is fantastic with its unique shape.
· Advanced quality testing equipment and methods are used to ensure high quality products.
· The product has found its wide applications in the industry because of its fine characteristics.
Features
Two stage compressor air end
This two stage compressor lowers the compression ratio compared with a single air compressor, reduces air leakage, bearing load and ensures a longer life service and volumetric efficiency of the air end. With our optimization, bearings have a life span of over 150,000 hours, and low noise, low vibration, safe and reliable operation is ensured.
Four-pole motor
As the motor speed is relatively low with 1480RPM (50HZ) as compared with that of the two-pole motor, there is air compressor wear and a longer service life.
Intelligent control system
Greeknhi's GA+VSD series intelligent control system is able to conduct remote control through computer interface and achieve simultaneous control for multiple compressors.
Split type
The air end and motor is connected separately, which is easier for installation, dismantlement and maintenance..
Backward curved centrifugal fan
An optional backward curved centrifugal fan uses an impeller to increase air flow. In addition, during the operation the centrifugal fan features no friction, low noise, no dust and easy maintenance.
Main technical data of GA+VSD series screw air compressor
| Model | Motor power | Working pressure bar | Capacity m3/min | Dimensions mm |
| GA22+VSD | 22KW/30HP | 8-13 | 0.7-4.15 | 1300*750*1400 |
| GA30+VSD | 30KW/40HP | 8-13 | 1.16-6.4 | 1650*850*1650 |
| GA37+VSD | 37KW/50HP | 8-13 | 1.54-7.25 | 1650*850*1650 |
| GA45+VSD | 45KW/60HP | 8-13 | 1.54-9.7 | 1650*850*1650 |
| GA55+VSD | 55KW/75HP | 8-13 | 1.54-12.5 | 1850*1050*1800 |
| GA75+VSD | 75KW/100HP | 8-13 | 2.52-16.5 | 2050*1050*1850 |
| GA90+VSD | 90KW/125HP | 8-13 | 2.52-20.5 | 2050*1050*1850 |
| GA110+VSD | 110KW/150HP | 8-13 | 3.77-24.5 | 2600*1660*1880 |
| GA132+VSD | 132KW/175HP | 8-13 | 3.77-28.0 | 2600*1660*1880 |
| GA160+VSD | 160KW/215HP | 8-13 | 4.0-33.6 | 2880*1780*2000 |
| GA200+VSD | 200KW/270HP | 8-13 | 10.0-43.0 | 3200*1780*2000 |
| GA250+VSD | 250KW/335HP | 8-13 | 10.0-54.0 | 3400*2120*2200 |
Company Features
· Xin Green Machinery (Fujian) Co., Ltd has been focusing on the market research, development, production, and marketing of oil lubricated rotary screw air compressor over the past years.
· Xin Green Machinery (Fujian) Co., Ltd has a professional, stable, young and experienced R&D team.
· Xin Green Machinery (Fujian) Co., Ltd continuously and consistently provides top quality oil lubricated rotary screw air compressor and services of utmost satisfaction to the customers at all times. Ask!
Product Details
Adhering to the concept of 'details and quality make achievement', Greeknhi works hard on the following details to make the oil lubricated rotary screw air compressor more advantageous.
Application of the Product
Our oil lubricated rotary screw air compressor has a wide range of applications.
Greeknhi is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
Enterprise Advantages
Our company has established an elite team of high quality, high education and professional ability. They are always ready to develop new competitive products according to market demand.
To improve service, Greeknhi has an excellent service team and runs a one-for-one service pattern between enterprises and customers. Each customer is equipped with a service staff.
Greeknhi makes best effort to becoming a world-recognized first-class enterprise. We take 'producing high-quality products' as the responsibility and 'being efficient, pragmatic and innovative' as the business philosophy. Besides, we insist on the principle of 'high quality guarantees consumers' interests and honesty protects the interests of partners'.
Greeknhi was officially founded in After years of exploring and developing, we have obtained significant achievement in the industry.
Greeknhi's products are very popular both at home and abroad.
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
