Features
Highly efficient cooling system
Greeknhi's GA series air compressor is designed with an operating temperature of 55℃, similar to a tropical desert environment. This series features an improved cooling system for controlling the operating temperature of the unit cooler, thus ensuring the air compressor will not fail during high temperature operations.

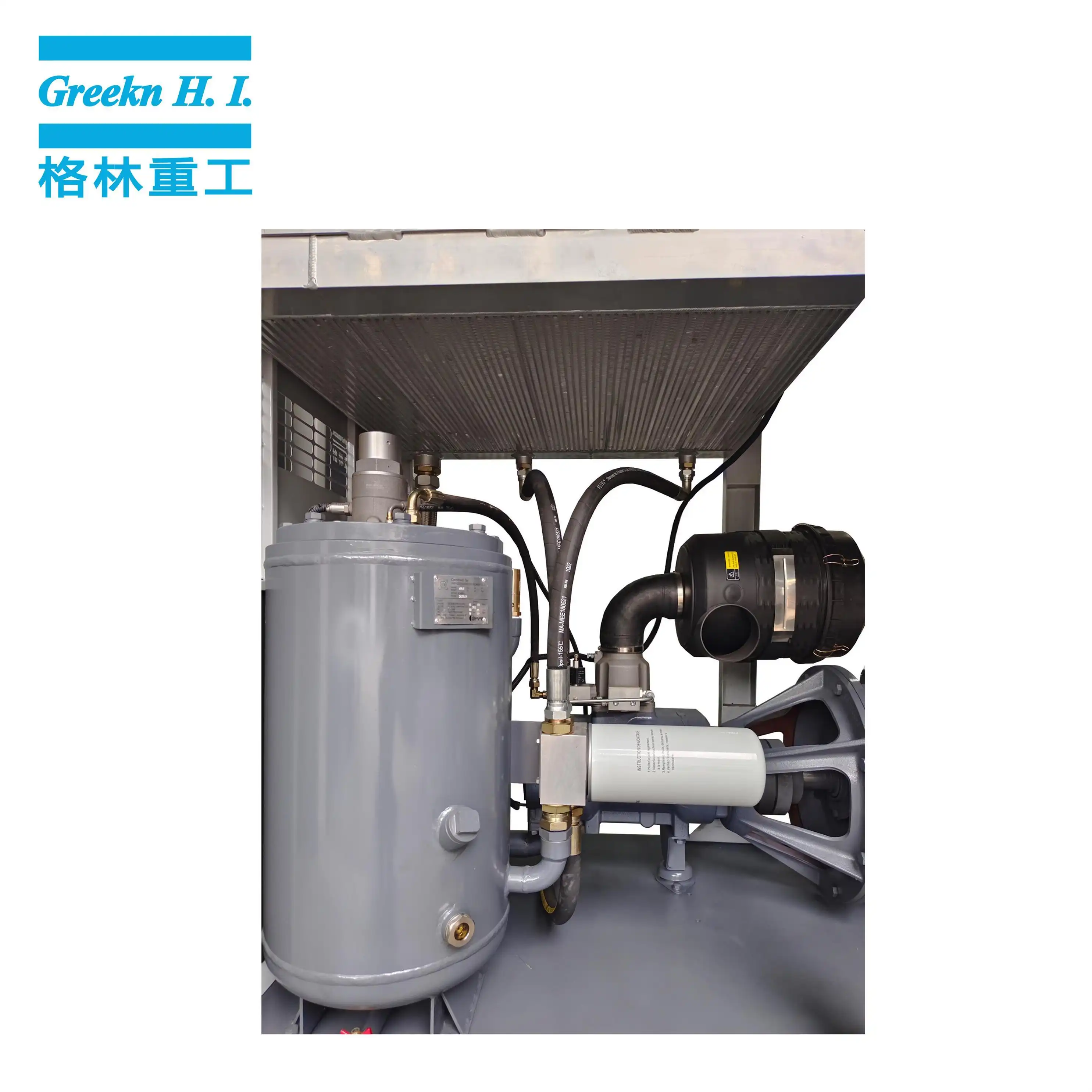

Three stage oil-gas separator
This three stage oil-gas separator is made independently by Greenair and has won a national patent. It includes three stages: centrifugation, sediment and filtration. It can provide high quality compressed air with an oil content less than 2ppm.
Original air end with large air capacity
The air compressor is equipped with asymmetric male and female rotors and they have two prominent advantages over the other rotors.As the gear tooth profile of the rotor consists of an arc and arc envelope, a "convex-concave" seal is achieved between the rotors, which helps to produce hydrodynamic lubricant film and make the compressor more efficient.Speed of this air compressor is 30-50% lower than that of other air compressors, due to the large rotor and bearing. The rotor and bearing also reduce noise, vibration and effects caused by impurities and carbides on the rotor and ensures a longer service life.
High quality air end bearing
Greeknhi GA series compressor uses SKF bearings. It features a stable operation and is applicable to variable working conditions, ensuring the motor a longer service life.
Highly efficient drive system

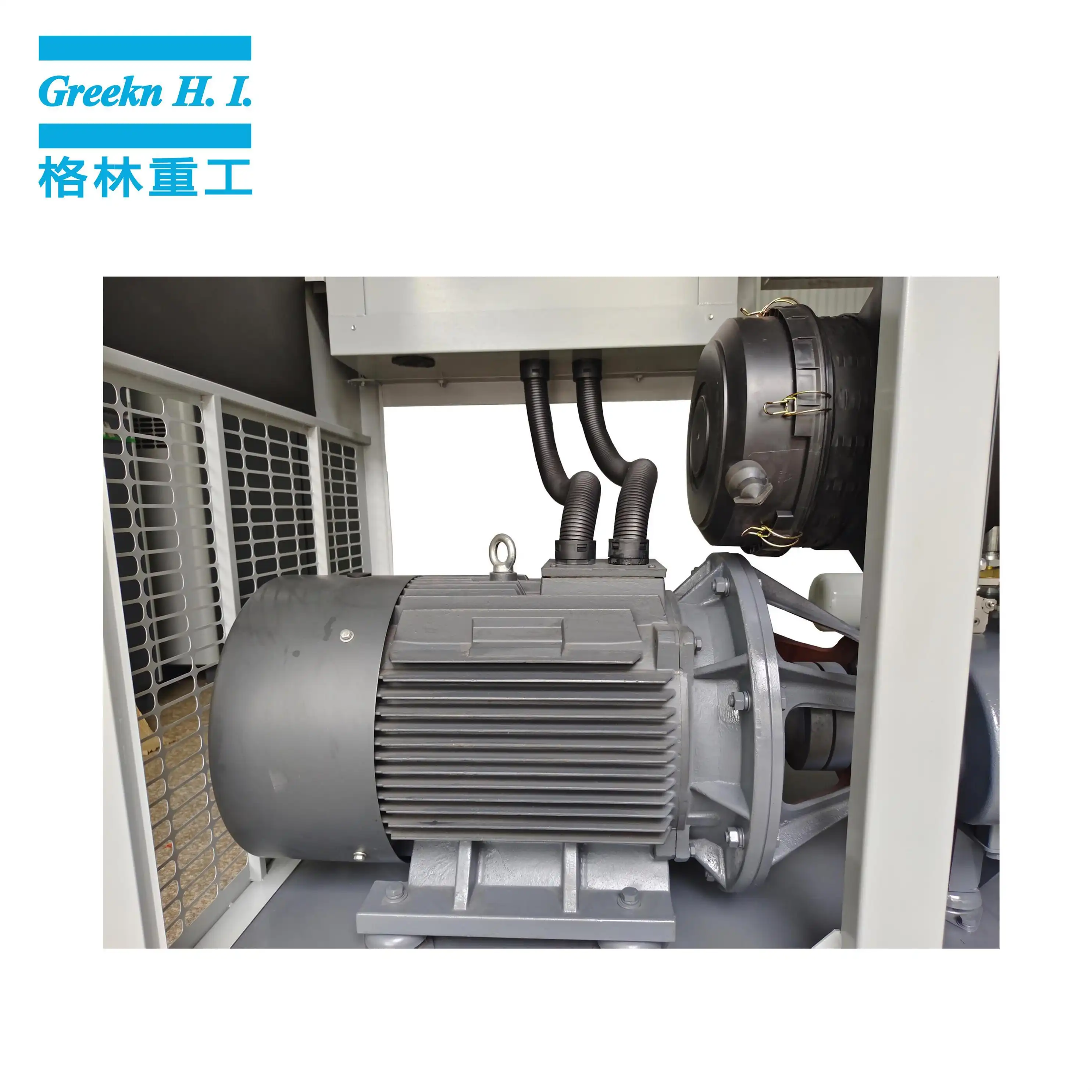

It is an integrated drive system without a gear. Using a 1:1 direct connection drive, there is no production loss, making it an ideal drive system. It combines the motor, coupling box and air end as a whole to ensure compressor efficiency and center alignment of motor and air end when they are installed or during operation.
Special motor for air compressor
The highly efficient motor meets IE3 standards with an energy efficiency up to 93%.
Main technical data of GA series screw air compressor
| Model | Motor power | Working pressure bar | Capacity m3/min | Dimensions mm |
| GA7 | 7.5KW/10HP | 8 10 13 | 1.2 1.0 0.8 | 1000*700*1220 |
| GA11 | 11KW/15HP | 8 10 13 | 2.0 1.8 1.6 | 1200*750*1400 |
| GA15 | 15KW/20HP | 8 10 13 | 2.88 2.41 2.02 | 1250*750*1400 |
| GA22 | 22KW/30HP | 8 10 13 | 3.97 3.43 3.02 | 1250*750*1400 |
| GA30 | 30KW/40HP | 8 10 13 | 5.20 4.72 4.29 | 1650*850*1650 |
| GA37 | 37KW/50HP | 8 10 13 | 6.70 6.08 4.88 | 1650*850*1650 |
| GA45 | 45KW/60HP | 8 10 13 | 8.24 7.40 6.20 | 1650*850*1650 |
| GA55 | 55KW/75HP | 8 10 13 | 10.52 8.90 8.00 | 1850*1050*1800 |
| GA75 | 75KW/100HP | 8 10 13 | 14.36 12.02 10.34 | 2050*1050*1850 |
| GA90 | 90KW/125HP | 8 10 13 | 16.20 14.52 12.60 | 2050*1050*1850 |
Company Advantages
· Greeknhi Screw Air Compressor oil flooded rotary screw air compressor leads the industry in the progress of production.
· The quality of this product meets the requirements of many international certifications.
· Without the high quality performance, oil flooded rotary screw air compressor can not be so popular in this market.
Company Features
· Xin Green Machinery (Fujian) Co., Ltd is a specialist supplier of oil flooded rotary screw air compressor. We have been offering clients a reliable and efficient manufacturing service for years.
· Except advanced technology, Greeknhi Screw Air Compressor also focuses on the professional experts introduction.
· Greeknhi Screw Air Compressor believes the popularity of oil flooded rotary screw air compressor relies on its high quality and professional service. Contact us!
Application of the Product
The oil flooded rotary screw air compressor developed by Greeknhi is widely used in various fields.
With the concept of 'customers first, services first', Greeknhi always focuses on customers. And we try our best to meet their needs, so as to provide the best solutions.
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
