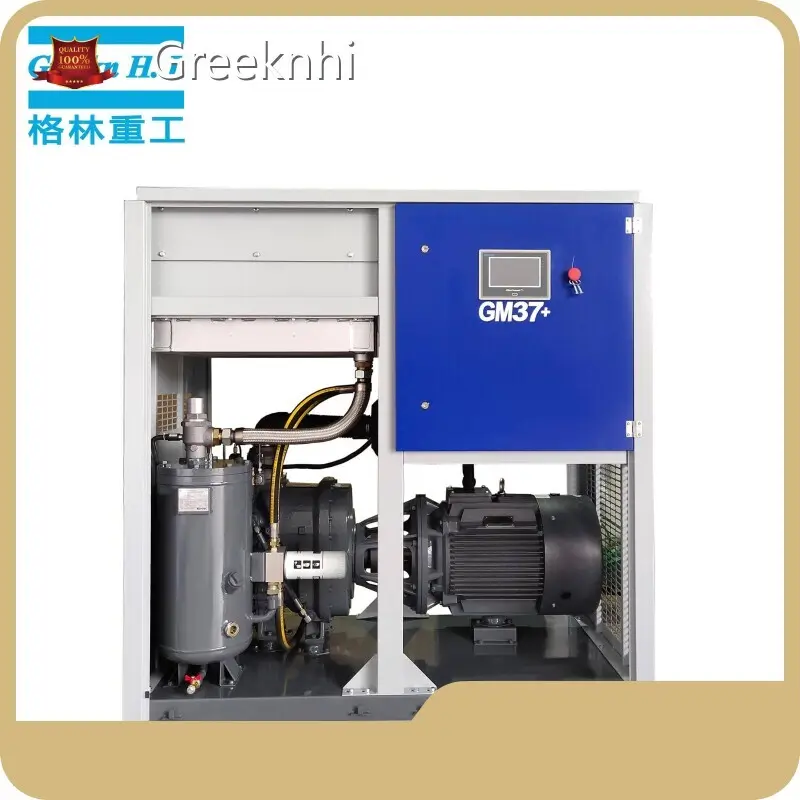

Greekn HI Direct Drive Oil Injected Screw Compressor GM37+ 37KW 50HP Double Stage Variable Speed Compressor
Features
Two stage compressor air end
This two stage compressor lowers the compression ratio compared with a single air compressor, reduces air leakage, bearing load and ensures a longer life service and volumetric efficiency of the air end. With our optimization, bearings have a life span of over 150,000 hours, and low noise, low vibration, safe and reliable operation is ensured.
Permanent magnet variable frequency motor
Greeknhi's permanent magnet motor uses a motor with the temperature rise lower than 60K, ensuring the compressor has a longer life. The motor is made from rare earth permanent magnet material, which requires a low current due to its high magnetic strength and load torque during motor start up and operation. The combined use of this motor and permanent magnet rotor achieves soft-start and electricity saving of up to 50%, with the motor's efficiency up to 10%-15% when compared with an asynchronous motor with the same specifications, thus avoiding a powerful mechanical impact on the compressor under the motor's full pressure start and ensuring a longer service life.
Intelligent control system
Greeknhi's GM+ series intelligent control system is able to conduct remote control through computer interface and achieve simultaneous control for multiple compressors.
Split type
The air end and motor is connected separately, which is easier for installation, dismantlement and maintenance..
Backward curved centrifugal fan
An optional backward curved centrifugal fan uses an impeller to increase air flow. In addition, during the operation the centrifugal fan features no friction, low noise, no dust and easy maintenance.
Main technical data of GM+ series screw air compressor
| Model | Motor power | Working pressure bar | Capacity m3/min | Dimensions mm |
| GM22+ | 22KW/30HP | 7-13 | 0.7-4.15 | 1300*750*1400 |
| GM30+ | 30KW/40HP | 7-13 | 1.16-6.4 | 1650*850*1650 |
| GM37+ | 37KW/50HP | 7-13 | 1.54-7.25 | 1650*850*1650 |
GM45+ | 45KW/60HP | 7-13 | 1.54-9.70 | 1650*850*1650 |
| GM55+ | 55KW/75HP | 7-13 | 1.54-12.5 | 1850*1050*1800 |
| GM75+ | 75KW/100HP | 7-13 | 2.52-16.5 | 2050*1050*1850 |
| GM90+ | 90KW/125HP | 7-13 | 2.52-20.5 | 2050*1050*1850 |
GM110+ | 110KW/150HP | 7-13 | 3.77-24.5 | 2600*1660*1880 |
| GM132+ | 132KW/175HP | 7-13 | 3.77-28.0 | 2600*1660*1880 |
| GM160+ | 160KW/215HP | 7-13 | 4.0-33.60 | 2880*1780*2000 |
| GM200+ | 200KW/270HP | 7-13 | 10.0-43.0 | 3200*1780*2000 |
| GM250+ | 250KW/335HP | 7-13 | 10.0-54.0 | 3400*2120*2200 |
Company Advantages
· The materials employed in the production of Greeknhi Screw Air Compressor is up to the international standard.
· Our rotary screw compressor is not only beautiful but also durable.
· The product meets the requirements of customers and has broad market potential.
Company Features
· As a leading enterprise specializing in manufacturing rotary screw compressor, Xin Green Machinery (Fujian) Co., Ltd has an outstanding capacity in this field.
· Greeknhi Screw Air Compressor has invested a lot of energy to produce high quality atlas copco rotary screw compressor.
· We have formulated policies to support our sustainability work. We will ensure that high-quality production and safe working conditions across the value chain.
Application of the Product
Our rotary screw compressor meets the needs of multiple industries and fields.
In addition to creating excellent Rotary Screw Air Compressor, Compressed Air Dryer, Greeknhi is also able to provide comprehensive and reasonable solutions for customers.
Greeknhi is committed to the research and development,design, production,sales,installation, repair,maintenance and technical engineering consulting services of efficient and energy-saving air compression system and compressed air purification equipment.The main products of the company are screw air compressor,air dryer,air receiver tank,etc...
