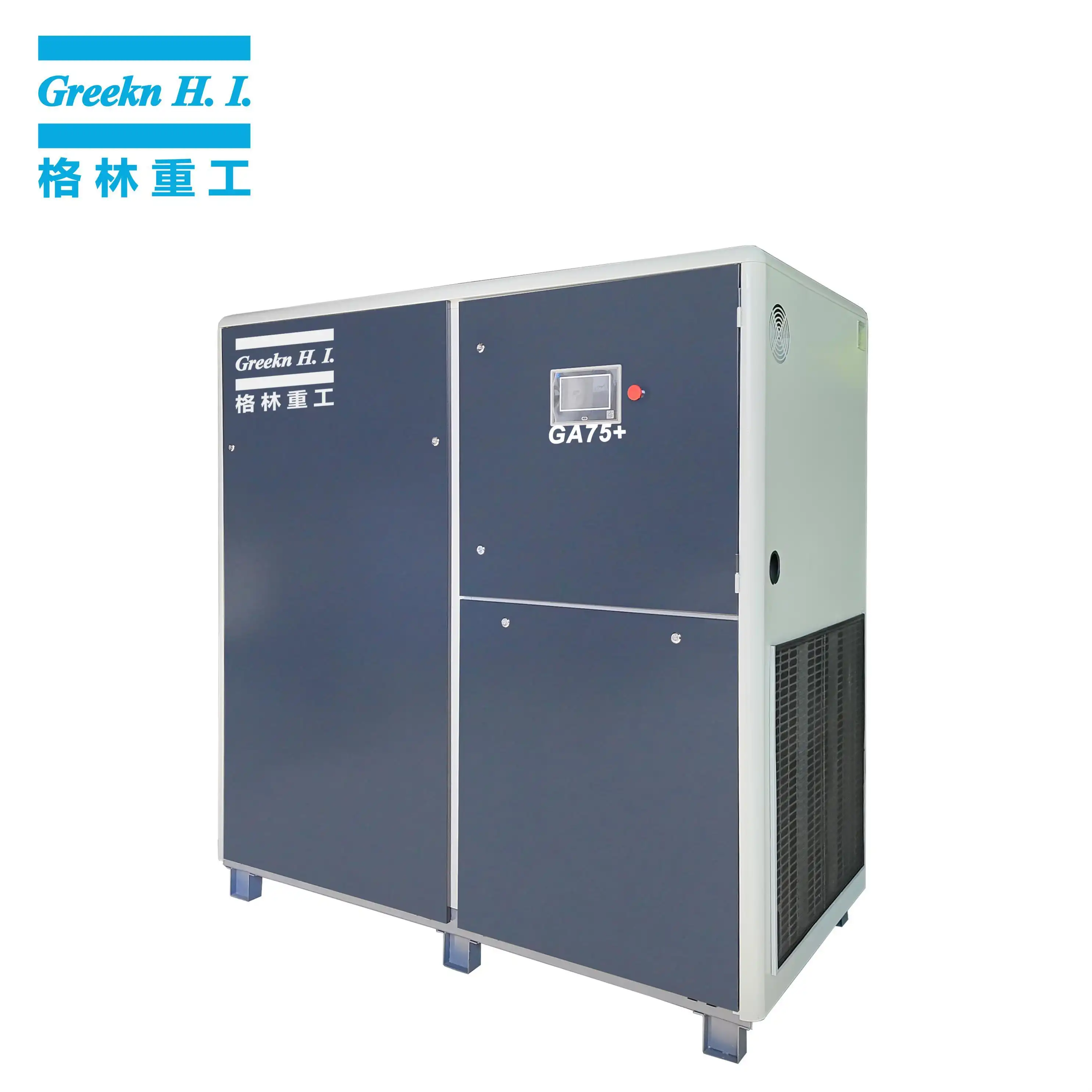

Greekn H.I. Double Stage Air Compressor GA75+ 75KW 100HP Two Stage Oil Injected Screw Air Compressor
Greekn H.I. SCREW AIR COMPRESSOR
GA+ Series Two Stage Fixed Speed Rotary Screw Air Compressor
MOQ: 1SET
Payment: T.T
Delivery time: 10-30 days
Start Port: Xiamen port,China.
Certification: CE GCCA
Packing: Paper box
Model: GA22+-GA355+
Motor power: 30-485HP
Motor power: 22-355kW
Motor type: High efficiency motor
Working pressure: 7-13BAR
Capacity: 3.2-69.2m³/min
Voltage: 220/380/415/440/460V
Frequency: 50/60HZ
Air end: Two stage
Energy saving air end
The two stage air end can produce more air when compared with the single stage one with the same power. The two stage air end combines a single stage and two stage compressor rotor into an enclosure with a direct drive front gear in order to achieve an optimum linear velocity that matches the air output during each stage's rotor operation.
Subsided air inlet valve
For Greekn H.I. GA+ series compressor, a gravity-inducted back-pressure valve is used as the air inlet valve, which prevents oil blowout from the air end and reduces air intake resistance.
High polymer filter paper
The Greekn H.I. GA+ series lubrication system is designed with a highly efficient oil-gas separator filter element, which can remove oil impurities, lower compressor wear and ensure a long lifespan up to 4000-8000 hours.
Intelligent control
The Greekn H.I. GA+ series comes with a RS485 communication interface, through which computer remote communication control and simultaneous control of several compressors is achieved.
Soft starter
With this soft starter, the instantaneous current generated as the motor starts is significantly lowered, thus protecting the motor and other compressor parts, ensuring there is less load and wear on the compressor.
Four-pole motor
As the motor speed is relatively low with 1480RPM (50HZ) as compared with that of the two-pole motor, there is air compressor wear and a longer service life.
Side-mounted cooler
It is a highly efficient cooling system designed specially for clients in tropical areas to keep them away from compressor shutdown difficulties caused by high temperature operation of the machine.
Company introduction
The Greekn H.I. company covers a construction area of 25,000 square meters, the factory covers an area of 15,000 square meters, more than 100 employees, including more than 60 workshop technicians, 10 R & D engineers, more than 20 sales team.Our specialization lies in screw air compressor technology. We are fully committed to providing customers with highly effective air compressors and dryers to help customers achieve optimal performance in even the most challenging conditions, like tropical areas with high-temperature operation. Our products help lower the consumption of electrical energy without sacrificing performance.
Product Details
Energy saving double stage air end
The two stage air end can produce more air when compared with the single stage one with the same power. The two stage air end combines a single stage and two stage compressor rotor into an enclosure with a direct drive front gear in order to achieve an optimum linear velocity that matches the air output during each stage's rotor operation.
High efficiency four-pole induction motor
As the motor speed is relatively low with 1480RPM (50HZ) as compared with that of the two-pole motor, there is air compressor wear and a longer service life.
Thermostatic valve
Sense the temperature of oil by thermostatic valve,protect machine from over-heating.
Oil separate tank
Triple stages of separator can effectively reduce the oil content to less than 2ppm.
Patented design of inlet valve
Sinking gravity sensor oil stop valve,effectively stops the oil reverse and largely reduces the inlet obstruction loss.
Controller
Triple stages of separator can effectively reduce the oil content to less than 2ppm.
Oil separator
Multi-grade oil separator,the oil content of fine public 2ppm pollution minimum and required minimum maintenance.
Air filter
Triple stages of separator can effectively reduce the oil content to less than 2ppm.
Large cooler
Combined design of air cooler and oil cooler.A higher level standard makes the compressor run in ambient temperature 55 centigrade.
Centrifugal fan
An optional backward curved centrifugal fan uses an impeller to increase air flow.In addition,during the operation the centrifugal fan features no friction,low noise,no dust and easy maintenance.
Inverter
Energy saving 20%-30%
Highly-efficient PWM inverter:
Keep constant discharge pressure.
Lower the sudden current of launching.
Adjust the motor rotary speed to produce air according to the demand.
** The GAVSD series compressor can run in two mode,variable speed mode or fixed speed mode.
